Large Language Models (LLMs) have changed how we use AI, evolving from simple text generators into powerful agents that can handle complex tasks. This is made possible by tool calling (or function calling), which lets LLMs access real-time data, perform actions, and interact with external systems.

Tool calling removes the limits of static training data, turning LLMs into active participants in workflows rather than just conversational tools.

This guide explains what LLM tool calling is, how it works, why it matters, and what to look for when implementing it in production.

What is LLM Tool Calling?

LLM tool calling is the ability of a Large Language Model to recognize when an external action is needed, create a structured request (usually in JSON), and let an external system execute it. This extends the LLM’s capabilities beyond its training data, allowing it to interact with the real world.

What counts as a “tool”

A tool is any external function, API, database, or code environment the LLM can use to get or process information. Examples include:

• APIs: Access web services, real-time data, or platforms like Salesforce or GitHub.
• Databases: Query or update structured (SQL/NoSQL) or unstructured (vector) data.
• Code Execution: Run scripts for calculations, analysis, or transformations.
• Plugins/Extensions: Pre-built modules for tasks like image generation or document processing.
• Automations: Trigger workflows or interact with smart devices.

What tool calling is not

• Tool calling is more than prompt engineering: The LLM generates a real call to an external function, not just a text suggestion.
• Tool calling is distinct from simple retrieval: Unlike a model that merely fetches and reads content, tool calling constructs precise, structured arguments that can trigger real actions.

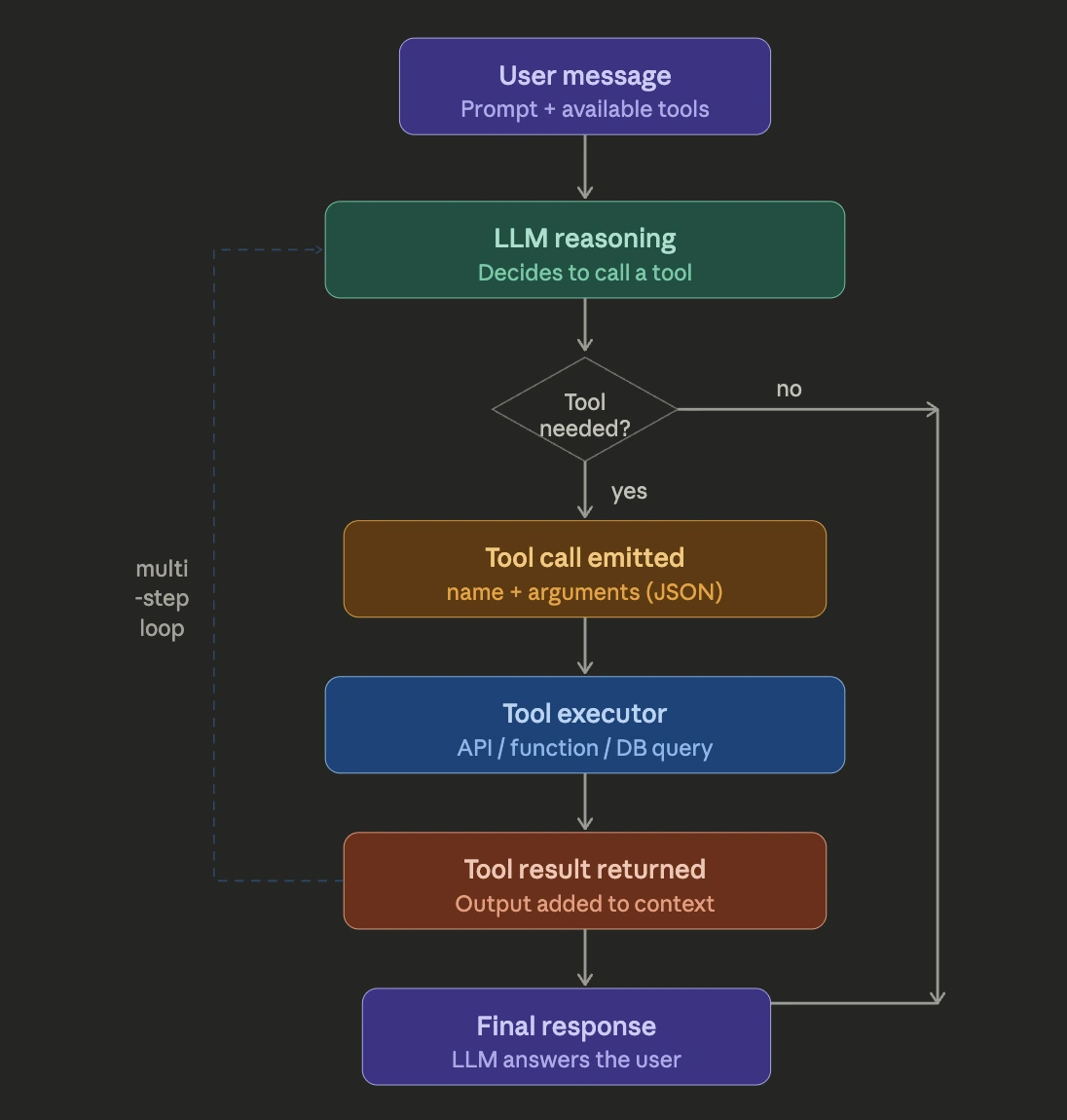

How does LLM Tool Calling work?

LLM tool calling operates through a structured workflow that allows the model to interact with external systems, often in dynamic production environments. This process can be understood as a six-step agentic loop:

Step 1: Recognizing the Need for a Tool

When a user submits a prompt, the LLM determines whether it can answer using its internal knowledge or if an external tool is needed. The model interprets the user’s intent to decide when outside data or actions are required. For example, “What’s the weather in London right now?” signals the need for a weather API.

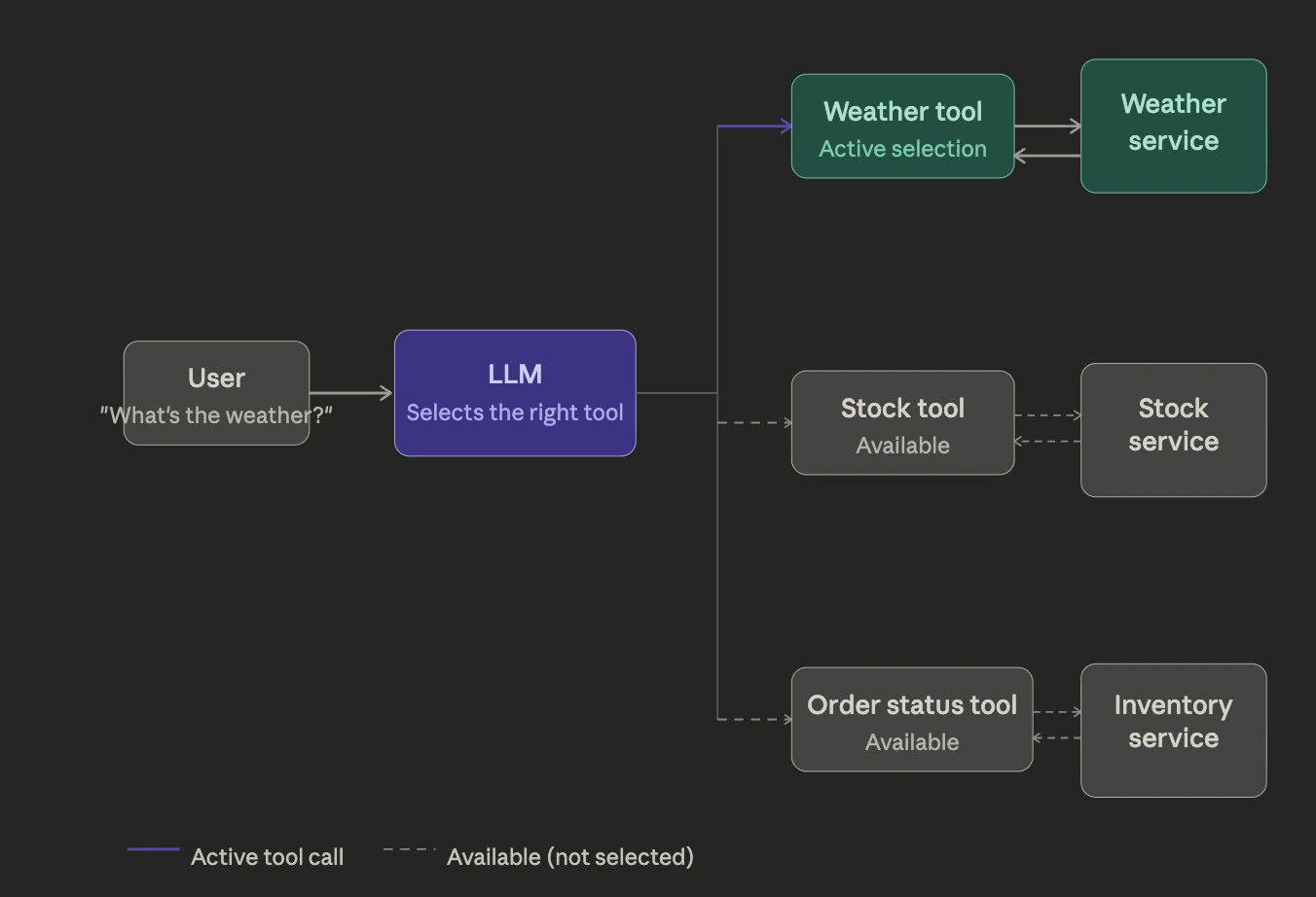

Step 2: Selecting the Tool

After identifying the need, the LLM evaluates available tools based on descriptions and input schemas to select the most appropriate one. In systems with many tools, a preliminary “Tool Discovery” step filters relevant tools to avoid overwhelming the LLM and to optimize its context window.

Step 3: Constructing and Sending a Query

Once a tool is chosen, the LLM generates a structured call, usually in JSON format, containing the tool name and required parameters. This output is then picked up by the orchestration layer, which sends it to the appropriate external system for execution. For instance, {"name": "get_weather", "arguments": {"city": "London"}}. This payload is sent to an external application or execution layer for processing.

Step 4: Receiving and Processing the Response

The application or middleware layer executes the tool call, handling authentication, error management, and data transformations, before returning a clean result to the LLM. The result is captured and prepared for the LLM, ensuring reliability and correctness before it is returned.

Step 5: Presenting the Information or Taking Action

The LLM receives the output and incorporates it into the conversation. For information retrieval, it generates a human-readable answer. For actions, like sending an email, it may confirm that the task was successfully completed, providing a seamless user experience.

Step 6: Refining the Process

In multi-step or complex tasks, the LLM may re-evaluate the conversation using the tool’s output. It can choose to call additional tools, refine its reasoning with new data, or request clarification from the user to ensure accurate, complete, and contextually appropriate results.

Why Tool Calling matters

LLM tool calling fundamentally extends what AI models can do — moving them from passive text generators into agents that can take real-world actions.

• Transforms LLMs into active agents: Moves LLMs beyond text generation, enabling them to perform real-world tasks and solve problems autonomously.
• Overcomes LLM limitations: Allows access to real-time information, proprietary databases, and private systems, improving accuracy, relevance, and freshness of responses.
• Improves reliability: Structured outputs like JSON provide predictable, machine-readable instructions, reducing format errors and parsing ambiguity. And because the LLM's responses are grounded in real data returned by tools — rather than its training data alone — factual hallucinations also decrease.
• Enables practical actions: LLMs can execute tasks such as sending emails, querying databases, updating records, or triggering complex workflows, making them truly productive.
• Delivers business value: Speeds up operations, lowers costs, automates repetitive processes, and frees human resources for higher-value strategic work, enhancing overall efficiency.

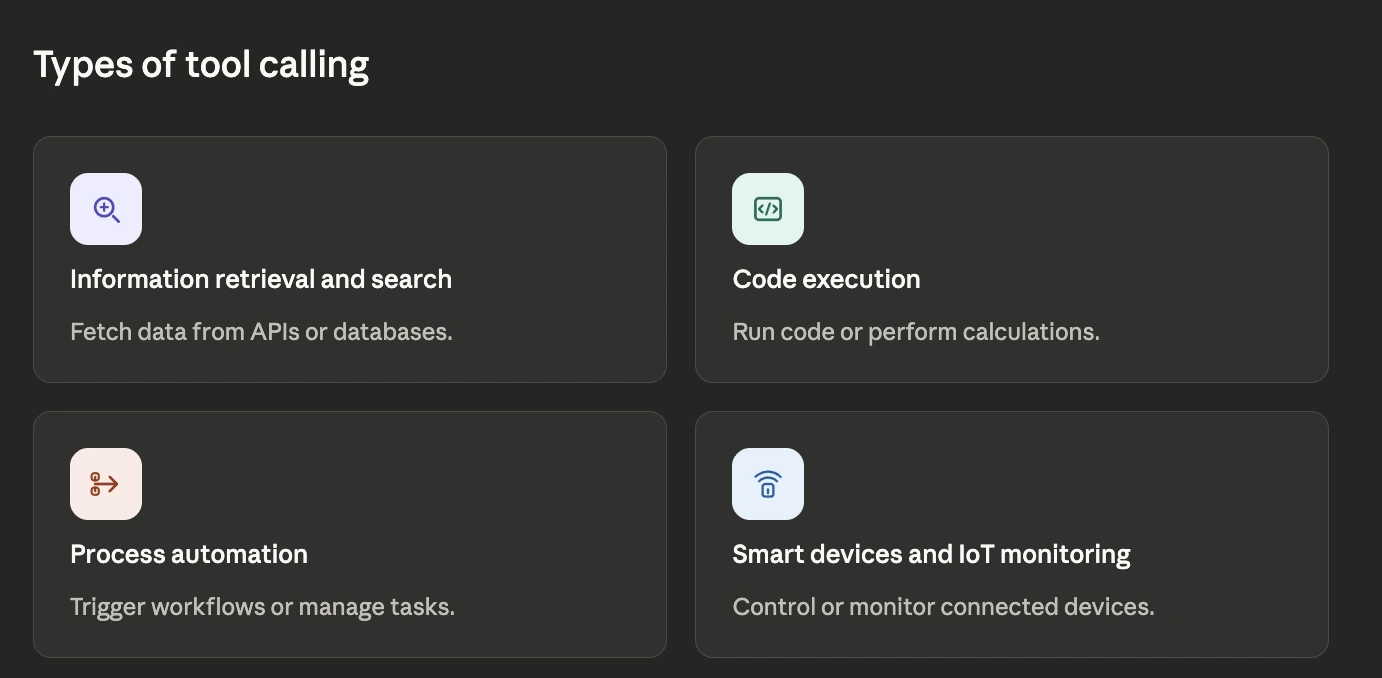

What are the types of Tool Calling?

LLM tool calling can be categorized based on the type of external interaction and the problems it solves. The main types include:

1. Information Retrieval and Search

These tools allow LLMs to fetch and process data from external sources. Examples include:

• External APIs: Access real-time information such as weather forecasts, stock market updates, news articles, or search engine results.
• Databases (SQL/NoSQL): Query structured data like customer records, order histories, or product catalogs.

Vector Databases: Perform semantic searches over large, unstructured document collections. These are commonly used in Retrieval-Augmented Generation (RAG) architectures, where retrieved chunks are passed as context to the LLM alongside the user's query.

2. Code Execution

Code execution tools enable LLMs to perform computations, data analysis, and other transformations beyond their built-in capabilities:

• Programming Languages (e.g., Python): Run scripts for complex calculations, statistical analysis, or data manipulation.
• Specialized Mathematical Tools (e.g., Wolfram Alpha): Handle advanced math, symbolic computation, or scientific problem-solving.

3. Process Automation

These tools allow LLMs to trigger workflows or interact with other software systems:

• Workflow Automation Platforms: Initiate tasks in project management tools like Jira, trigger CI/CD pipelines, or manage approval processes.
• Communication Tools: Send emails, Slack messages, SMS notifications, or create calendar events.
• CRM/ERP Systems: Manage leads, update customer profiles, or handle inventory in platforms such as Salesforce or HubSpot.

4. Smart Devices and IoT Monitoring

These tools allow LLMs to interact with and control physical devices:

• IoT Device APIs: Turn devices on/off, adjust thermostats, or query sensor data from connected devices.
• Home Automation Systems: Integrate with smart home hubs to execute commands or retrieve device states.

What are the common examples of Tool Calling?

LLM tool calling can be seen in action across a variety of practical scenarios. These examples illustrate how LLMs go beyond generating text to performing real-world tasks:

1. Real-Time Information Retrieval

LLMs can fetch live data from external sources to provide up-to-date responses.

For example:

• When a user asks, "What's Tesla's stock price right now?", the LLM calls a get_stock_price(symbol="TSLA") API.
• For a question like, "What are the top headlines in tech today?", the LLM queries a get_news_headlines(category="technology") API.

2. Mathematical and Code Execution

LLMs can perform complex calculations or execute code for analytical tasks.

For example:

• A user asking, "Calculate the square root of 12345," triggers a call to calculate_math(expression="sqrt(12345)").
• For requests like, "Analyze this dataset for sales trends," the LLM generates and executes a Python script to perform statistical analysis and create visualizations.

3. Database Actions

LLMs can query or update structured data in databases.

For example:

• A support agent asking, "Find all open support tickets for John Doe," results in the LLM executing find_tickets(customer_name="John Doe") on a CRM database.
• A sales rep requesting, "Update the lead status for 'Project Phoenix' to 'Qualified'," prompts the LLM to call update_crm_lead(project="Project Phoenix", status="Qualified").

4. Action Automation

LLMs can trigger workflows or interact with applications to perform tasks.

For example:

• A user saying, "Send an email to my team summarizing our last meeting," leads the LLM to compose the email and call send_email(recipients, subject, body).
• For a request like, "Book a flight from London to New York next month," the LLM uses a book_flight(origin, destination, date) API, potentially after confirming dates with the user.

Tool Calling vs. Tool Search vs. MCP

While often used in related contexts, it's crucial to understand the distinct roles of Tool Calling, Tool Search, and the Model Context Protocol (MCP):

Tool Calling: This is the core mechanism, the fundamental ability of an LLM to generate structured output (like JSON) to invoke an external function or API. It's the "hand" that allows the LLM "brain" to manipulate external objects.

Tool Search: This is the discovery layer. As the number of available tools grows (potentially to hundreds or thousands), providing all tool definitions to the LLM's context window becomes inefficient and costly. Tool Search allows the LLM to dynamically retrieve the most relevant tool definitions from a large catalog, typically via semantic search over tool descriptions, based on the user's intent, so only relevant tools are loaded into the context window.

Model Context Protocol (MCP): This is an interface standard. Model Context Protocol (MCP) provides a standardized way to define and connect tools to LLMs, much like a "USB-C port" standardizes how peripherals connect to a computer. It aims to simplify the integration process by offering a consistent protocol (e.g., tools/list to discover, tools/call to execute) for communication, regardless of the underlying tool or LLM provider.

Security and governance for Tool Calling

Implementing LLM tool calling safely requires strong security and governance practices such as:

• Authentication and Authorization: Use OAuth, API keys, or service accounts to secure tool access. Apply least-privilege principles and manage tokens per user.
• Preventing Prompt Injection: Guard against prompt injection, including indirect injection via tool outputs, by validating inputs against strict schemas, sandboxing tool execution, and restricting which tools can be invoked based on context and user role.
• Input and Output Safety: Validate inputs against schemas and sanitize outputs. Use allowlists for permitted tools and parameters.
• Data Privacy and Compliance: Follow regulations like GDPR or HIPAA. Log all tool calls and define clear data retention policies.
• Human-in-the-Loop for Critical Actions: For sensitive or irreversible operations, interrupt the agentic loop to require explicit human approval before the tool call is executed.

What makes a model good for Tool Calling?

The effectiveness of an LLM in tool calling depends on several key characteristics like:

1. High Adherence to Structured Output (JSON/Syntax): A good tool-calling model consistently and accurately outputs the required structured JSON format, including correct tool names and well-formed arguments, without deviations or "hallucinated" syntax.
2. Strong Reasoning and Decision-Making Capabilities: The model must effectively understand user intent, discern when a tool is necessary, and logically select the most appropriate one from the list of available tools. It should also be able to chain multiple tool calls if a complex task requires it.
3. Native Tool-Calling Training: Models explicitly fine-tuned or pre-trained with tool-calling datasets perform significantly better. They learn the patterns of identifying tool use, extracting parameters, and formatting output, leading to higher reliability than models retrofitted with prompt engineering alone.
4. High Reliability and Low "Tool Hallucination": The model should rarely "hallucinate" or invent tool names or parameters that do not exist. It needs to accurately map user requests to the available tools and their schemas.
5. Effective Context and Parameter Management: The ability to manage conversation history, integrate tool outputs, and extract precise parameters from varied natural language inputs is crucial. For complex scenarios, the model should handle a larger number of tools efficiently, often coupled with strategies like Tool Search to manage context window limitations.

Conclusion

LLM tool calling turns large language models from basic text generators into dynamic, interactive AI agents. It allows them to access external APIs, databases, and code to retrieve real-time information, perform complex computations, and execute practical actions.

To implement this effectively, you need the right infrastructure that handles complexity without slowing you down.

TrueFoundry enables you to deploy, secure, and scale AI systems with built-in support for tool integrations, access controls, and monitoring. This makes it easier to manage model behavior and build reliable, production-grade AI applications that go beyond simple conversations.

Frequently Asked Questions

How are LLMs trained for tool calling?

LLMs are trained via fine-tuning or pre-training with datasets pairing user prompts and structured tool calls. They learn to identify when external tools are needed, select the correct tool, and format calls accurately, sometimes parsing dynamic tool definitions.

What is an LLM call?

An LLM call is any interaction where a prompt is sent to a Large Language Model, which returns a response. It can be simple text generation or involve complex workflows, including multi-step reasoning, tool usage, or retrieval-augmented generation (RAG).

How do LLMs call MCP tools?

LLMs call MCP tools by receiving MCP-compliant tool definitions, selecting the appropriate tool based on user intent, generating a structured call, sending it to an execution layer, and receiving standardized results for further processing or final output.

What is the difference between function calling and LLM tools?

The terms are often used interchangeably. 'Function calling' was the original term used by providers like OpenAI, while 'tool calling' is the broader, more current term that encompasses functions, APIs, code execution, and other external capabilities. In strict usage, a 'function' is one type of tool, but in practice the distinction is largely semantic.
