Create and use agents via SDK

The Agent Harness SDK lets you define agents in code, save them to the Agent Registry, and invoke them from any application — with multi-turn conversations, live event streaming, human-in-the-loop approvals, and parallel sub-agents. Read the concepts below — each one uses the same support-bot example so you can see how the pieces connect. When you’re ready to write code, follow one of the two paths in Getting started.

Core concepts

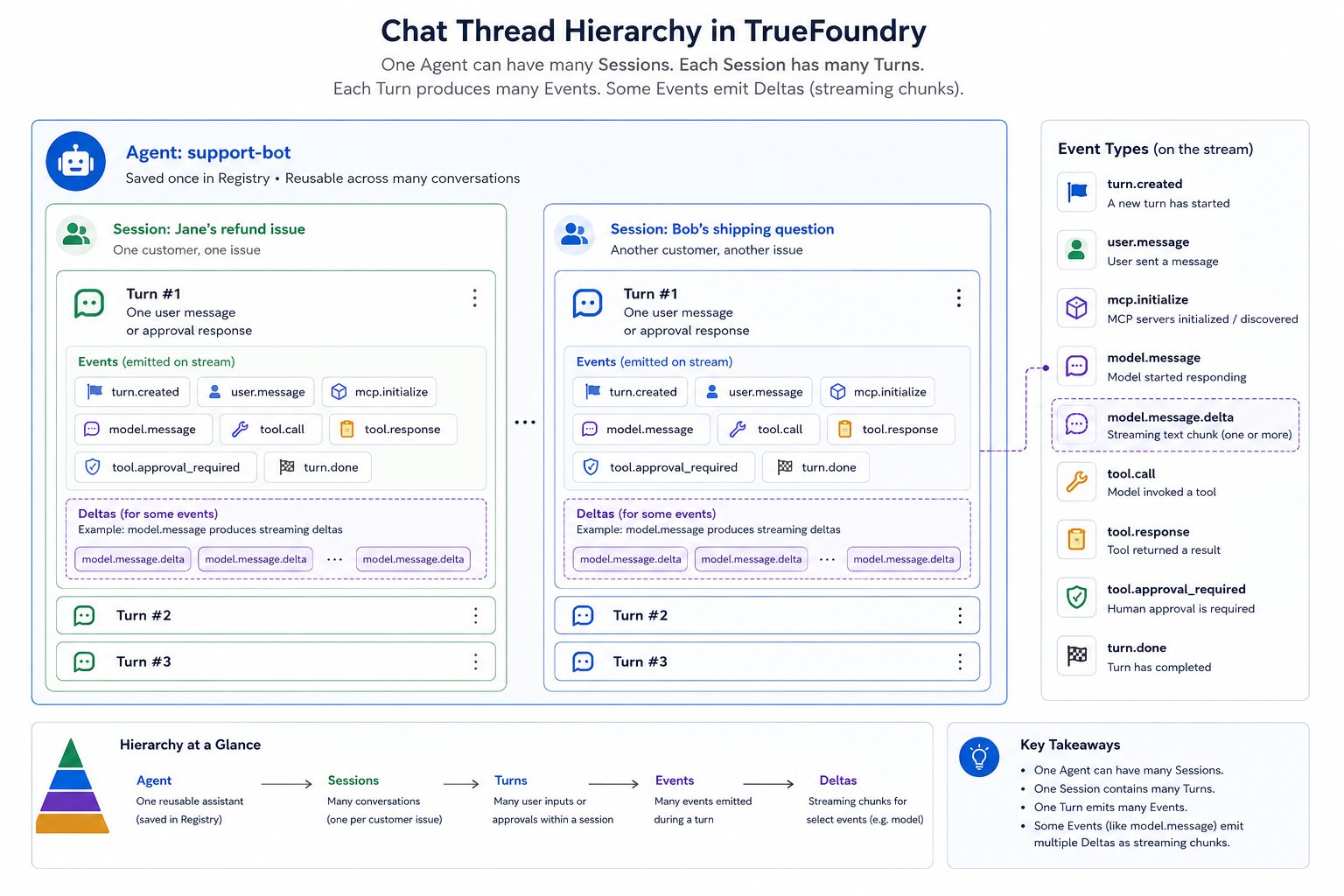

Interaction with an agent follows a strict hierarchy: one Agent → many Sessions → many Turns → many Events → some Deltas. The sections below walk through each layer using a single running example, a customer support agent named support-bot.

Agent

An agent is a saved definition in the Agent Registry — not a running process. You define it once (model, instructions, tools, config) and any number of customers can invoke it by name. Imagine support-bot: a customer support assistant that looks up orders and processes refunds via an MCP server. Its spec might look like this:

support-bot — AgentManifest

type: truefoundry-agent
name: support-bot
description: Customer support assistant for order lookups and refunds
model:
  name: anthropic/claude-sonnet-4-6
  params:
    max_tokens: 4096
instructions: |
  You help customers with orders. Look up order details before taking action.
  Always confirm before processing refunds.
mcp_servers:
  - name: orders-api
    enable_tools: ["get_order", "process_refund"]
    require_approval_for_tools: ["process_refund"]
config:
  iteration_limit: 25
  sandbox:
    enabled: true
collaborators: []

Every customer session loads this same definition. Changing the agent (new model, new tools) creates a new version in the Registry — existing sessions keep the config they started with. See Agent manifest reference for every field.

Session

A session is one issue worked through with the agent. It is the conversation context: all turns on that issue chain together, and the agent remembers what happened earlier in the same session. Each new issue — whether from the same customer or a different one — gets its own session. Example — two independent sessions:

Session	Issue	How it starts
`sess-7f2a9c1b`	Jane — refund for order ORD-2031	”What’s the status of order ORD-2031?”
`sess-9d4e2a88`	Bob — shipping question	A different customer starts their own chat

Jane’s follow-up messages about the refund stay in sess-7f2a9c1b. Bob’s question runs in a separate session, so the two conversations never share context.

Session for Jane's refund issue

{
  "id": "sess-7f2a9c1b",
  "agent_name": "support-bot",
  "title": "Jane Doe — refund for ORD-2031",
  "created_at": "2026-06-24T10:00:00Z"
}

Persist session.id so Jane can return tomorrow and pick up where she left off. Only one turn runs inside a session at a time.

Turn

A turn is one request in the conversation — a single back-and-forth boundary between your app and the agent. Each time Jane sends a message (or your app sends an approval), you create a new turn. Turns inside a session chain automatically: the agent sees every earlier turn in that session. Example — three turns in Jane’s refund session:

Turn	Who sends it	Input	What happens
Turn 1	Jane (via your app)	`"What's the status of order ORD-2031?"`	Agent looks up the order and replies with shipping status.
Turn 2	Jane	`"Please issue a full refund for that order."`	Agent prepares a refund, hits an approval gate, and pauses.
Turn 3	Jane (or support rep)	Approval: allow `process_refund`	Agent runs the refund and sends a confirmation.

Your code calls session.prepare_turn(input=...) and turn.execute(stream=True) once per row and consumes the returned event stream. Turn 2 knows Jane asked about ORD-2031 in Turn 1 without you resending that history — the harness chains turns for you.

A turn can also end paused when the agent asks a clarifying question (tool.response_required) or needs MCP OAuth (mcp.auth_required). You resume with a new turn, just like Turn 3 above.

Event

While a turn runs, the agent emits events over Server-Sent Events (SSE) — one JSON object at a time. Events tell your app what the agent is doing: calling a tool, getting a result, writing a reply, or finishing. Example — events during Turn 1 (Jane asks for order status):

Order	Event type	What your app learns
1	`turn.created`	Turn started — `turn_id: turn-001`
2	`mcp.initialize`	Agent connected to `orders-api`
3	`model.message`	Agent decided to call `get_order`
4	`tool.response`	Order data: shipped, $1,240.00
5	`model.message`	Agent starts composing the reply
6–8	`model.message.delta`	Reply text arriving in chunks — see Delta below
9	`turn.done`	Turn finished — final reply in `state.output`

Sample payloads:

turn.created

{ "type": "turn.created", "turn_id": "turn-001", "thread_id": null, "sequence_number": 1 }

tool.response

{
  "type": "tool.response",
  "thread_id": "main",
  "tool_call_id": "call-get-order-01",
  "content": "{\"order_id\":\"ORD-2031\",\"status\":\"shipped\",\"total\":1240.00}"
}

turn.done

{
  "type": "turn.done",
  "thread_id": null,
  "state": {
    "status": "done",
    "output": {
      "type": "model.message",
      "content": "Your order ORD-2031 shipped on June 12. Total: $1,240.00."
    }
  }
}

Every event carries an id, a thread_id ("main" for the root agent, or null for turn-level events like turn.created), and a sequence_number. The stream always opens with turn.created and closes with turn.done. All event types:

Event type	Meaning
`turn.created`	First event on every turn stream. Carries the `turn_id` and `previous_turn_id`.
`turn.done`	Last event on every turn stream. Carries the terminal `state` (`done`, `cancelled`, or `error`) and the final `output` or `required_actions`.
`model.message`	The base assistant message — assembled model output, including any tool calls. On a live stream it arrives empty and fills in via deltas.
`model.message.delta`	An incremental fragment of a `model.message` (text and/or tool-call chunks). Merge into the base by shared `id`. The most frequent event.
`tool.response`	The result of a server-side tool the harness executed, linked to its call by `tool_call_id`.
`tool.approval_required`	A tool call needs human approval before it can run. The turn pauses; resume with a `UserToolApprovalEvent`.
`tool.response_required`	A client-side tool (e.g. `ask_user_question`) needs a result from you. The turn pauses; resume with a `UserToolResponseEvent`.
`thread.created`	A sub-agent thread started. Carries its `thread_id` and `title`. Not emitted for the main thread.
`thread.done`	A sub-agent thread finished (`done`) or failed (`error`). Not emitted for the main thread; does not close the turn stream.
`mcp.initialize`	One or more MCP server sessions were initialized for a thread. Lists each server in `mcp_servers`.
`mcp.auth_required`	One or more MCP servers need OAuth before the agent can proceed. The turn pauses; resume after the user authorizes via the provided `auth_url`.
`sandbox.created`	A sandbox was provisioned for the turn. Reused across turns in the session.

For full field-level schemas of every event, see the Turn events reference.

Delta

Most events arrive as a complete payload. Model output is different — the LLM streams token by token, so the harness sends a base model.message event first, then a series of model.message.delta fragments that you merge into it. All deltas share the base event’s id. Example — streaming Jane’s reply in Turn 1: The agent’s full reply is: “Your order ORD-2031 shipped on June 12. Total: $1,240.00.” Your client receives this sequence:

Base event (empty shell)

{ "type": "model.message", "id": "msg-a1", "thread_id": "main", "content": "", "sequence_number": 5 }

Deltas (merge into msg-a1 as they arrive)

{ "type": "model.message.delta", "id": "msg-a1", "content": "Your order ORD-2031", "sequence_number": 6 }
{ "type": "model.message.delta", "id": "msg-a1", "content": " shipped on June 12.", "sequence_number": 7 }
{ "type": "model.message.delta", "id": "msg-a1", "content": " Total: $1,240.00.", "finish_reason": "stop", "sequence_number": 8 }

Why stream deltas to the client? So you can show progress while the model generates — a typing indicator, word-by-word rendering, or a partial reply before the turn finishes. Your app merges each delta into the base event and re-renders events["msg-a1"].content on every chunk:

Your order ORD-2031
Your order ORD-2031 shipped on June 12.
Your order ORD-2031 shipped on June 12. Total: $1,240.00.

Use is_event_delta and merge_event_delta from truefoundry_gateway_sdk.agents (Python) or truefoundry-gateway-sdk/agents (TypeScript) — see Handling Event Delta. When the turn completes, turn.list_events() returns one pre-merged model.message — no deltas to handle on replay.

Thread is a related concept: an execution context inside a session. The root agent runs on thread_id: "main"; sub-agents get their own thread IDs. Events carry thread_id so you can partition a single turn stream when sub-agents run in parallel.

End-to-end walkthrough

The three turns from Turn above, shown together with the actual SDK calls and event payloads for Jane’s refund session (sess-7f2a9c1b) against support-bot. Solid arrows are SDK calls you make; dashed arrows are SSE events streamed back from turn.execute(stream=True).

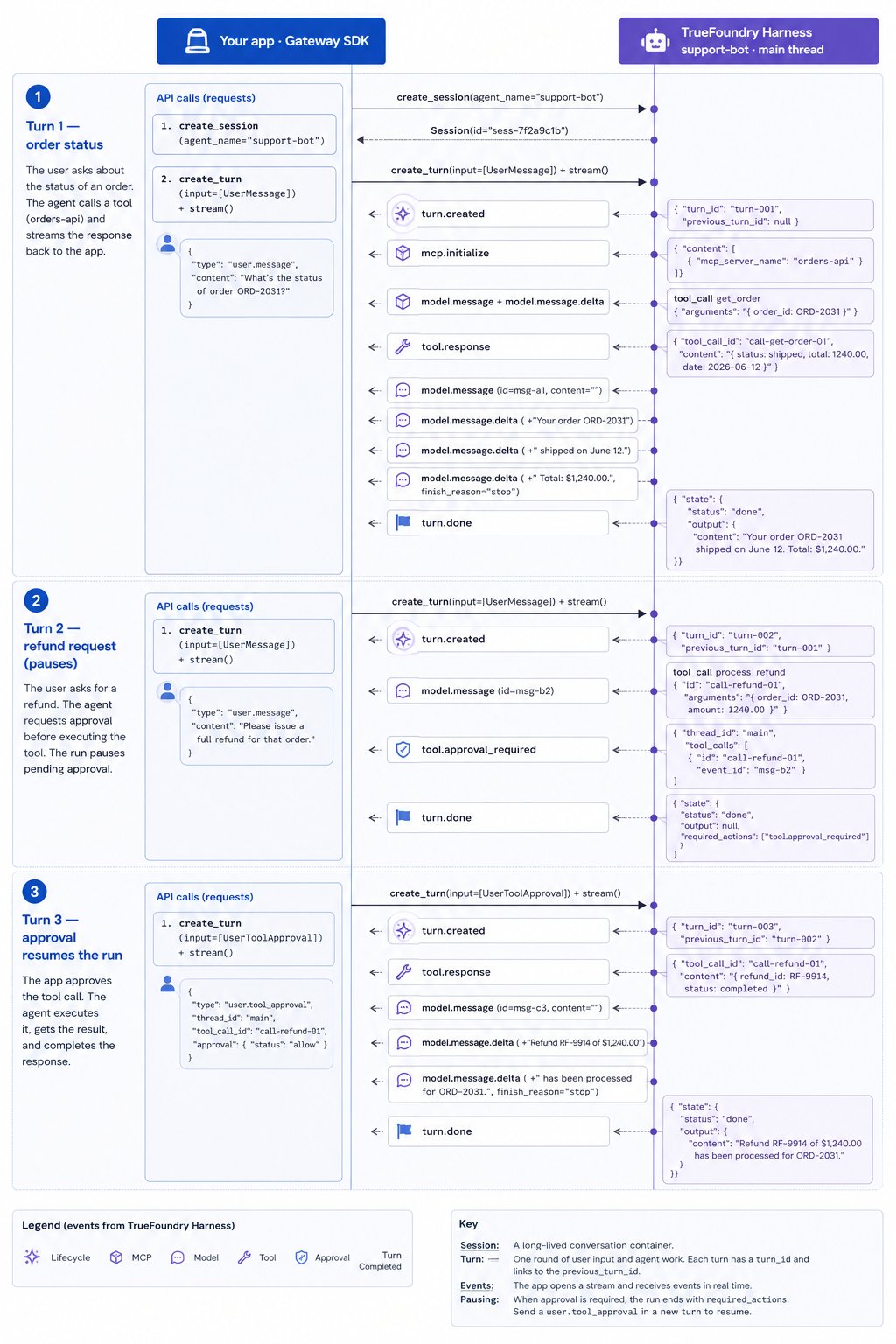

Sequence diagram of the support-bot session sess-7f2a9c1b across three turns. Your app (Gateway SDK) calls create_session and prepare_turn with execute(stream=true) against the TrueFoundry Harness running the support-bot main thread. Turn 1 (order status) streams turn.created, mcp.initialize, a get_order tool call and tool.response, model.message plus deltas, and turn.done. Turn 2 (refund request) streams a process_refund tool call, tool.approval_required, and a paused turn.done with required_actions. Turn 3 (approval) sends user.tool_approval and streams tool.response, model.message plus deltas, and a final turn.done. Each event is annotated with its real JSON payload.

Turn 1 — Order status
Turn 2 — Refund (pauses)
Turn 3 — Approve (resume)

Input: "What's the status of order ORD-2031?"

seq	type	summary
1	`turn.created`	Turn starts
2	`mcp.initialize`	Connected to `orders-api`
3–4	`model.message` + deltas	Agent calls `get_order`
5	`tool.response`	`{ status: shipped, total: 1240.00 }`
6–8	`model.message` + deltas	Streams reply to Jane’s UI
9	`turn.done`	Done — `output` has full reply

Input: "Please issue a full refund for that order."

seq	type	summary
1	`turn.created`	Chains from Turn 1
2	`model.message`	Agent calls `process_refund`
3	`tool.approval_required`	Paused — Jane must approve
4	`turn.done`	`required_actions` populated, no `output`

Input: { type: "user.tool_approval", approval: { status: "allow" } }

seq	type	summary
1	`turn.created`	Chains from Turn 2
2	`tool.response`	Refund processed
3–5	`model.message` + deltas	Streams confirmation to Jane’s UI
6	`turn.done`	Issue resolved

Turn	Jane’s action	Ends with	What your app does next
1	Asks for order status	Reply in `output`	Show reply, wait for next message
2	Requests refund	`tool.approval_required`	Show approval UI → Turn 3
3	Approves refund	Confirmation in `output`	Show confirmation, issue closed

A separate issue — Bob’s shipping question, or even Jane’s next problem — runs in its own session, where Turn 1 starts fresh with no refund history carried over.

Getting started

Two SDK packages, two paths. You can create agents in the Playground and skip the create path entirely.

Task	Package	Client
Define and save an agent	`truefoundry`	`from truefoundry import client`
Run a saved agent (Python)	`truefoundry-gateway-sdk`	`AgentSessionClient` from `truefoundry_gateway_sdk.agents`
Run a saved agent (TypeScript)	`truefoundry-gateway-sdk`	`AgentSessionClient` from `truefoundry-gateway-sdk/agents`

Create an agent

Define an AgentManifest and save it to the Registry with the truefoundry client — model, MCP tools, skills, and runtime config.

Use an agent

Invoke a saved agent with the gateway SDK — AgentSessionClient in Python and TypeScript — sessions, turns, event streaming, delta merging, approvals, threads, and reconnects.

Complete example

Runnable terminal chat client handling every event type.

Agent Playground

Build and test agents in the UI, then invoke them from code.

Reference

Agent manifest

Every field on AgentManifest.

Turn events

All event types with field schemas.

Runtime API

SDK methods and turn input types.
